iLogic Course
This course begins individual topics with an introduction to programming and iLogic. Then, we begin to model an assembly so that we can apply and mix the individual topics in a real world example. We focus on iLogic snippets and include Inventor API for some of the complex file creation rules.
What to Expect
- 20 hours of programming content
- 100+ videos
- Introduction to programming methods
- Introduction to Visual Studio
- Examples of automation logic found in industry
- File & Drawing Creation
- Walk through of 3D modeling
Assembly Automation

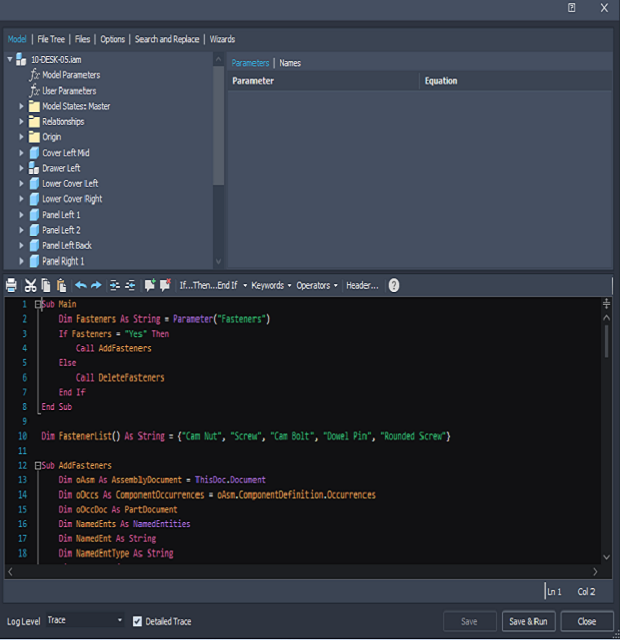

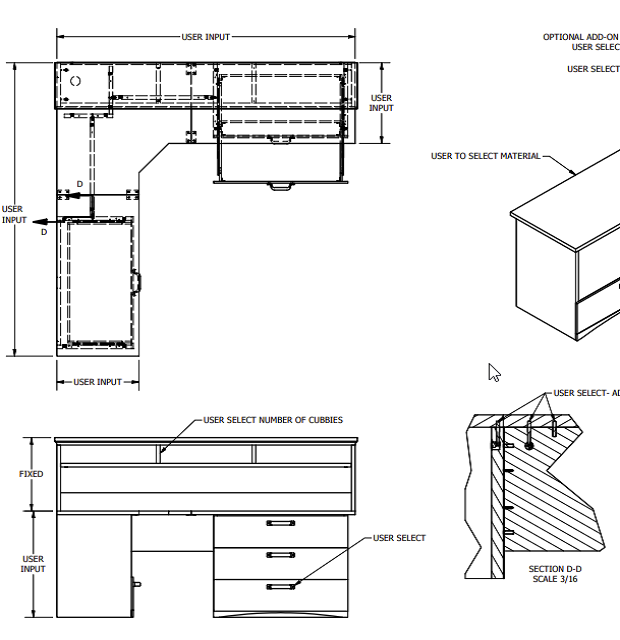

Automate the creation of an assembly by having a user input parameter values and select settings.
Drawing Automation
Topics include drawing automation and best practices in what method to choose.
Code Provided
All of the code used to automate the desk assembly is provided along with commentary for guidance.
Course Contents
Introduction
Available in
days
days
after you enroll
1: Programming Techniques I
Available in
days
days
after you enroll
2: Introduction to iLogic
Available in
days
days
after you enroll
3: iLogic & Assemblies
Available in
days
days
after you enroll
- Going Over Similarities - Assembly (2:18)
- Sending Parameters (7:10)
- Rule Automatically Running (2:03)
- Modifying Component Inside An Assembly (2:58)
- Adding and Replacing Components (7:06)
- Creating Patterns (8:37)
- Creating Constraints (11:15)
- Measuring Entities (2:09)
- Sending Values to Sub Assembly Components (2:08)
4: User Inputs & Working With List's
Available in
days
days
after you enroll
5: Programming Techniques II
Available in
days
days
after you enroll
6: Working With Excel
Available in
days
days
after you enroll
7: Modeling Desk Assembly
Available in
days
days
after you enroll
- Modeling the Desk Assembly Sketch (44:32)
- Additional Sketches (10:46)
- Modeling the Desk Assembly Parts I (34:40)
- Modeling the Desk Assembly Parts II (7:28)
- Modeling the Desk Assembly Parts III (20:12)
- Creating the Desk Assembly (8:51)
- Modeling the Desk Assembly Parts IV (25:03)
- Modeling the Desk Assembly Parts V (20:36)
- Modeling the Desk Parts VI (37:30)
- Modeling the Desk Parts VII (10:33)
- Modeling End Note (1:52)
- Creating the Cam Nut iFeature (8:04)
8: Writing iLogic For The Desk Assembly I
Available in
days
days
after you enroll
- Prepping the Assembly Model (7:12)
- Writing iLogic For The Desk (24:07)
- Setting The Desk Drawers (17:11)
- Setting The Material On Components (19:07)
- Setting The Desk Handles Using Excel (20:25)
- Setting The Top Section (25:53)
- Creating the User Form (17:31)
- Rule Structure I - Internal (7:29)
- Rule Structure II - Internal (25:02)
9: Debugging
Available in
days
days
after you enroll
10: iLogic & Inventor API
Available in
days
days
after you enroll
- Introduction To Occurrences (11:51)
- Using Logger.Info (9:50)
- SaveAs (8:04)
- Grabbing Component Documents I (8:45)
- Grabbing Component Documents II (3:19)
- Grabbing Component Documents III (10:13)
- External Rules (12:34)
- Running Rules With iLogic (5:32)
- Running Rule On Closed Document (7:15)
- Additional iLogicvb.Automation Tools (9:31)
- Creating A Text File (8:23)
- Grabbing Component Documents IV (3:47)
- Shared Variables (8:34)
- Search & Replace (5:33)
11: iLogic - Drawing Automation
Available in
days
days
after you enroll
12: Writing iLogic For The Desk Assembly II
Available in
days
days
after you enroll
- Adding Fasteners (59:47)
- Generating New Files Method I (51:04)
- Generating New Files Method II (9:57)
- Replacing File References (11:15)
- Generating New Files And Drawings (35:52)
- Creating A Sub Routine External Rule (26:24)
- Creating A Global Form and a Button (11:32)
- Rule Structure III - External (7:18)
13: Introduction To Visual Studio
Available in
days
days
after you enroll
- Installing Visual Studio
- Creating A Form On Visual Studio (59:58)
- Introduction To Class Objects (23:41)
- Creating A Class On Visual Studio (14:32)
- Inventor API On Visual Studio I (6:38)
- Creating Modules On Visual Studio (9:14)
- Creating Console Apps (5:20)
- Creating Constant Variables (3:09)
- Creating Enumerators (3:36)
14: Inventor API & Visual Studio
Available in
days
days
after you enroll
15: Inventor API Misc
Available in
days
days
after you enroll
Prerequisites
- No programming experience required.
- Desk assembly provided is modeled in 2020 version.
- Step-by-step videos are provided to re-create desk assembly models on your Inventor year.
- Inventor 2019 or above is recommended for full iLogic snippet accessibility.
